GpUPS 70 F 7
Nano UPS Super Capacitor Model

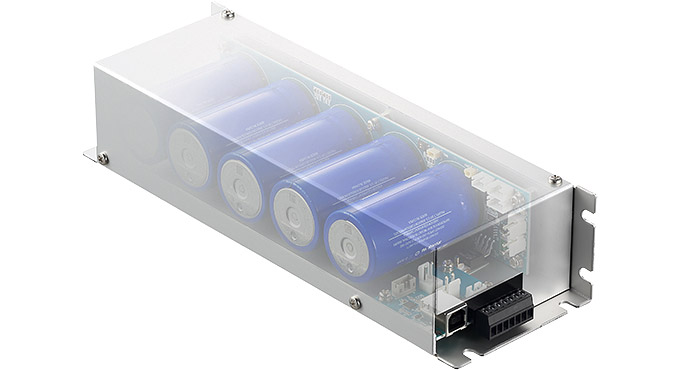

It is maintenance free and long life UPS equipped with super capacitor.
It is possible to back up 120 seconds at load 1A with UPS alone.
● Maintenance free and long life
Expected life 10 years or more * 35 ?
● Seamless
No instantaneous low backup power supply switching
● Automatic return
Automatic charging starts from power failure recovery
● Bypass charging
Even in the zero charging state, immediate power supply to the connected equipment is possible,
the start time of the current system is not affected
● Space saving

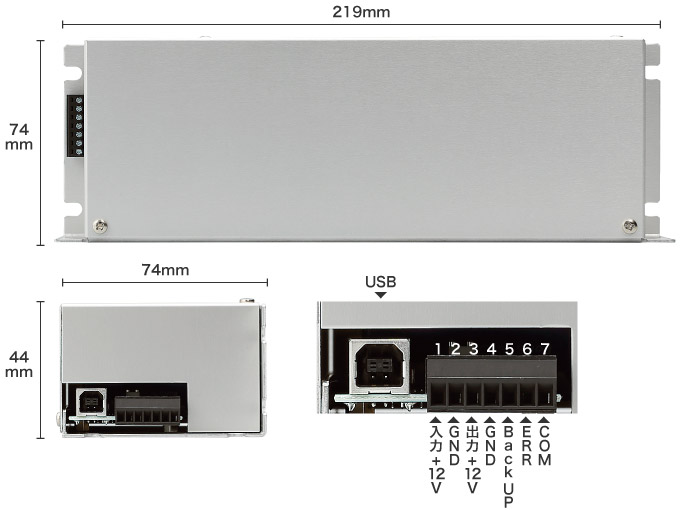

Can be used as a built-in UPS with an external form 219 × 74 × 44 mm
● Parallel operation
Supports up to 4 parallels, extends backup time
● Series operation
24 V for 24 V, 48 V for 4 straight
● OS shutdown
Start shutdown process of OS after specified time with power failure detection
Dedicated Application UPS Monitor
When incorporating in your program, you can easily incorporate it into customer application by using UPS monitor library (DLL).
Supported OS
● Windows 7 (32/64Bit)
● Windows 8 (32 / 64Bit)
● Windows Embedded Standard 7 (32 / 64Bit)
● Windows Embedded 8 Standard (32 / 64Bit)
● Windows 10 (32 / 64Bit)
For other OS, Please contact us.
Specification
| Input voltage | Rating 12 V DC (10.8 to 13.2 V DC) |
| Charging current | Maximum 0.5 A |
| Charging time | 30 minutes (charging time from complete discharge) |
| Size | 9.6 to 12.75 VDC* Output voltage range from -0.45 V to 0 V according to discharging |
| Maximum output current | 2A |
| Backup time | 120 seconds * At 1A output |
| Standby current | 50 mA (consumption current with no load after full charge) |
| Natural discharge | Discharge time from 12 V full charge to 9.6 V: 1 h 18 m |
| Output protection | Resettable fuse is used.Hold current: 2A, trip current: 4 A |
| Electric storage device | Electric double layer capacitor: 70F |
| Function | Cell balancevoltage monitoringover current protectionalarm outputunit expansion (series / parallel) |
| USB | Target device (Type B) |
| Alarm output | Photocoupler outputBack Up: Open collectorERR: Open collectorCOM: Common emitter |
| Outline | 219 * 74 * 44 (mm) |
| Mass | 650 g |
| Operating temperature | -20 to 60 ° C |
| storage temperature | -25 to 70 ° C |
| Electrostatic discharge resistance | IEC 61000-4-2 Level 2 |
| FT / B | IEC 61000-4-4 Level 2 |
| Electric field intensity | VCCI Class-A |
| Vibration | Frequency 10 to 150 Hz, Acceleration 5 m / s 2 IEC 60068 -2 - 6 conformity |
Combination And Backup Time (Load 1A)
| 12 V (UPS only) | 120 seconds |
| 12 V (UPS 2 parallel) | 240 seconds |
| 12 V (UPS 4 parallel) | 480 seconds |
| 24 V (UPS 2 serial) | 120 seconds |
| 24 V (UPS 2 serial 2 parallel) | 240 seconds |
| 48 V (UPS × 4 serial) | 120 seconds |
