Axvme 4902
Real-time general-purpose logic board series General purpose logic FMC carrier board

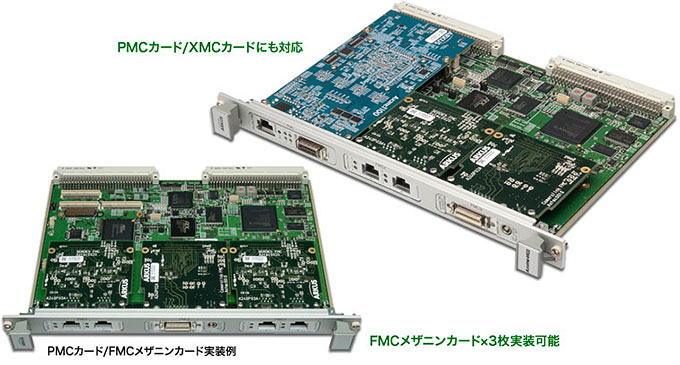

Up to three FMC mezzanine cards can be mounted on the VME bus compatible baseboard. One slot also supports PMC or XMC mezzanine cards and it is a carrier board that can accommodate mezzanine cards of various standards.
In addition, since each slot is connected to the FPGA, it is possible to add a wide variety of I / Os by implementing logic corresponding to various mezzanine cards. By adding arithmetic logic to the surplus resource, it is possible to realize a system that performs data input / output + operation processing with a single board.
It is a major feature of this board that it can flexibly correspond to the system that the customer is requested.
Specification
| FPGA |
User Logic: Spartan 6 XC 6 SLX 150 T (Xilinx) VME IF: Spartan 3 AN XC 3 S 400 A (Xilinx) |
| Local memory |
DDR 3: 1 Gbit (256 K × 16 bit) × 2 NOR Flash: 128 Mbit (16 M × 8 or 8 M × 16) × 2 One of them is FPGA Configuration |
| VME IF |
Specification: Compliant with VME Bus Revision C.3 Base address can be set by A32 Slave rotary switch |
| FMC IF |
Specification: VITA 57.1 standard 3ch (1ch is exclusively selected with XMC or PMC) |
| PMC IF |
Specifications: IEEE P1386 PCI bus: CI 32bit / 33MHz, 64bit / 66MHz Monarch / Non-Monarch correspondence (DIP SW selection) |
| XMC IF |
Specifications: VITA 42 standard PCIe Lane: x1 Root Complex / Endpoint UP / DN Stream compatible (DIP SW selection) |
| Other Hardware specification |
Power supply: 5.0 V ± 5% 12 V ± 5% - 12 V ± 5% PCB dimensions: PCB dimensions: 233.35 × 160 (mm) FMC Carrier Card 6 U size Operating temperature range: 0 to 60 ° C Operating humidity range: 35 to 85% No condensation) |
| Software | With BSP for development support |
