Ax 2mc 1100
Ax 2mc 1100

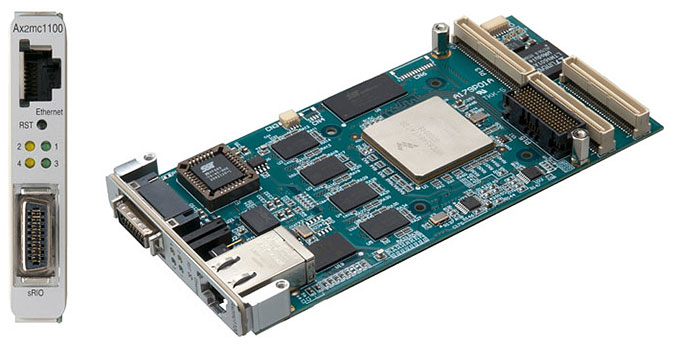

Ax2mc 1100 is a Serial Rapid IO (hereinafter sRIO) card with Freescale’s PowerQUICC III MPC8548E on CPU. Equipped with 4 lanes of sRIO high-speed data link of 2.5 Gbps, it can be used as both host and IO as PMC (PCI) and XMC (PCI Express) cards. This makes it possible to build high-speed sRIO networks between systems or between boards.
Also equipped with Gbit Ethernet, it can also be used as sRIO – GbE gateway card.
Specification
| CPU | MPC 8548 E (Freescale) PowerQUICC III | |
| Memory | FLASH | For 512 Kbyte Boot |
| SDRAM | 512 Mbytes DDR 2 - 400 | |
| I2C EEPROM | 1 Kbit | |
| SSD | 1 Gbyte | |
| Communication | Serial Rapid IO |
2.5 Gbps 4-Lane Host / Agent Mode InfiniBand 4 X Latch type connector |
| Gigabit Ethernet |
CPU built-in eTSEC 1ch RJ45 connector |
|
| RS232C | CPU UART 1ch non-isolated transceiver | |
| Interface | XMC | PCI Express 4-Lane ROOT Complex compatible |
| PMC | PCI 64bit / 66MHz MONARCH compatible | |
| Debug port | JTAG | |
| Power supply |
3.3 V 5 V (PMC) or VPWR (XMC) |
|
| Outline | 149 × 74 mm | |
| BSP |
Boot loader: U-boot OS: Linux Kernel 2.6 |
|
