Axsbc 8601
Intel Atom 3.5 inch CPU Board

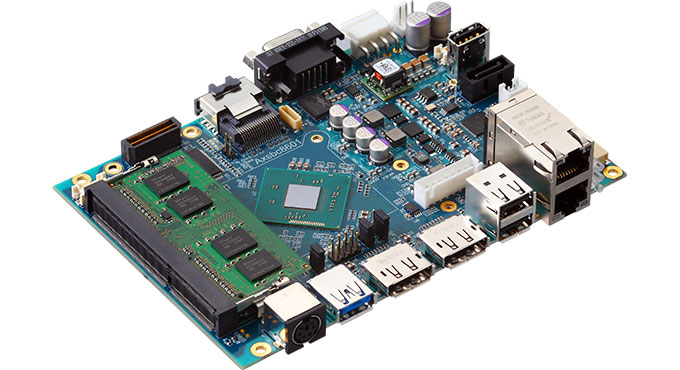

Axsbc 8601 is a 3.5 “size CPU board with advanced next generation Atom processor E3800 family.
It is also planned to expand series of other form factors, so we can respond to requests from small lot to semi-custom., Long-term stable supply, cost and other customer satisfaction.
Overview
- Intel Atom E3800 Family
- CPU Core number selectable
- ECC compliant
- Domestic design · production
- Secure support ? long term stable supply
- Low power consumption TDP 5 to 10 W
- Semi custom
- Optional: Isolated RS485-USB board, DIO / AIO board
Specification
| System |
CPU: Intel® Atom ™ E3800 Family Core number selectable: E3815 1 Core (512 K Cache, 1.46 GHz) E 3827 2 Core (1 M Cache, 1.75 GHz) E 3845 4 Core (2 M Cache, 1.91 GHz) |
|
Memory: 1 x SODIMM socket DDR 3 L 1333 MT / s ECC compatible (MAX 4 GB) * Memory is optional |
|
| I / O |
Serial port: 2x RS232C connector USB port: 1x USB 3.0 connector (Type-A) 2x USB 2.0 connector (Type-A) 3x USB 2.0 (onboard) LAN: 2x 10/100/1000 Base- T, RJ- 45 connector (with LED) SATA: 1 x SATA 2.0 connector 1 x SATA 2.0, mSATA connector PCIe: 1 x mini SAS connector (2 x Gen 2, 1 - Lane) SDIO: 1 x SDIO 3.0, SD Card connector Video port: 2 x DP 1.1 a , Display Port connector 1 x Analog RGB, VGA connector (D - Sub 15) * Optional Legacy I / O: 1 x PS 2 keyboard / mouse, Mini DIN 6 pin connector * Optional |
| Other |
Power input: 12 V ± 5% Dimension: 146.05 mm × 101.60 mm Form factor: 3.5 inch CPU |
| Environment |
Temperature: Operating: 0 to 50 ° C / Storage: -10 to 65 ° C Humidity: 95% RH or less (no condensation) |
| OS |
Windows 8.1, WE 8 S * Windows 7, WES 7 will be sequentially supported Linux Fedora 18 (Kernel 3.6) QNX * Bundle Yes |

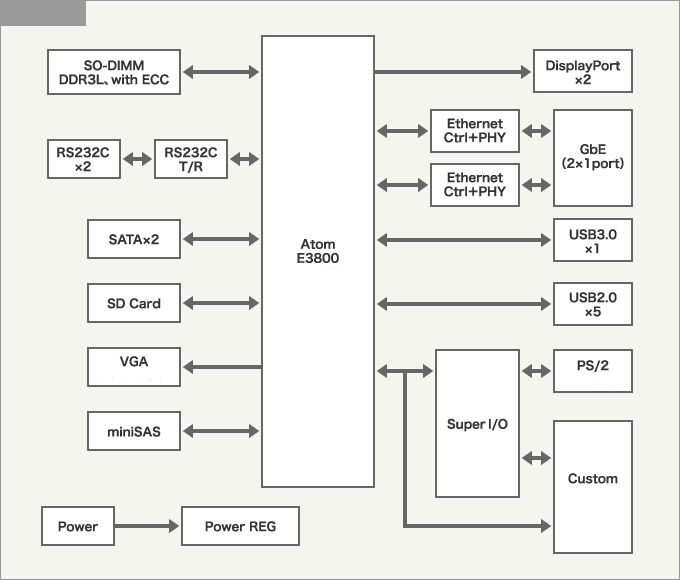

Block Diagram
