Axvme 4900
Real-time general-purpose logic board series VME base board

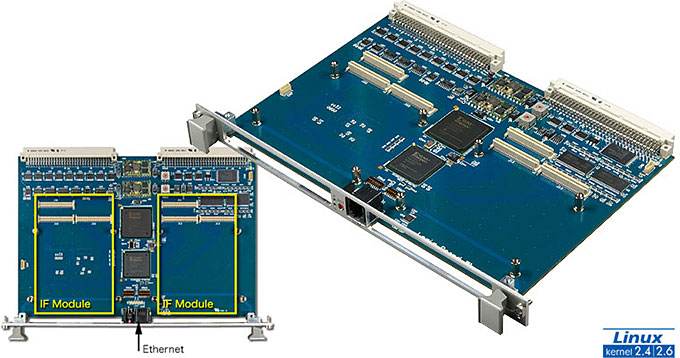

This machine is a general purpose real time logic board with user programmable FPGA on board.
● VME (6U double height) slave / master board
● Two expansion boards can be mounted and can be easily removed.
● VME bus master function (for specific VME space)
● FPGA (for USER) configuration program change via VME bus possible.
Specification
| FPGA 0 | Spartan 3 (XC 3 S 2000) |
| FPGA 1 | Spartan 3 (XC 3 S 1500) |
| DDR SDRAM | 256 MB |
| Flash | 8 MB × 1 |
| Ethernet | 10/100 / 1000base 1ch RJ45 |
| RS 232 | RS232C: 2 ch (modular jack connector x 1) |
| Expansion |
IF slot: 2 slots Signal level: LVTTL Number of I / O: A32, D64 |
| System bus |
Bus standard: VME bus Revision C. 3 compliant Operating mode: A 32 Slave Operating frequency: 16 MHz |
| Other hardware specifications |
Substrate size: 6U Power supply: 5 V ± 5%, 12 V ± 5% Consumption current: TBD Operating temperature range: 0 to 40 ° C Storage temperature range: -20 to 70 ° C Operating humidity range: 90% RH or less (no condensation) |
| Supported software | OS: Linux kernel 2.4 / 2.6 |
