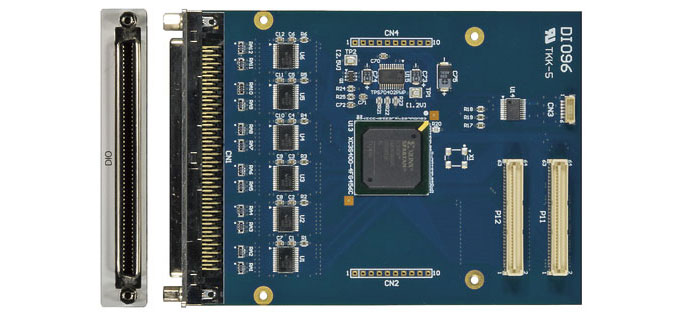

IFM 4900-D 001
Real-time general-purpose logic board series DIO board
This machine is a digital input / output board that can be mounted on an extension connector of real-time logic general purpose VME base board Axvme 4900 .
– I / O can be set with DIO 96 channels
– Signal level is TTL
Specification
| DIO I / F |
Signal level: TTL Insulation: none Number of channels: 96 ch (I / O can be set for every 8 ch) |
| Bus interface | LVTTL |
| Supported OS | Linux kernel 2.4 / 2.6 |
| External size | 120 × 92 mm |
| Power supply | 3.3 V ± 5%, 5 V ± 5% (received from PMC connector) |
| Environmental condition |
Operating temperature range: 0 to 40 ° C Storage temperature range: -20 to 70 ° C Operating humidity range: 90% RH or less (no condensation) Storage humidity range: 90% RH or less (without condensation) |
