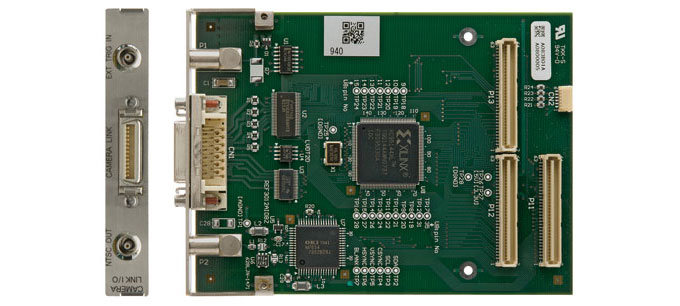

IFM 4900-G 001
Real-time General Purpose Logic Board Series Camera Link I / O Board
HW function of Camera Link I / O board
– Implements Camera Link I / F, NTSC output, external trigger
– Acquires image data at maximum VGA / 16bit / 200fps
– Outputs images acquired from camera with NTSC
Function to be Implemented in FPGA (Baseboard)
– Save the acquired image to DDR (baseboard)
– Save the result of adding the acquired images to DDR
– Can Compute intensity and centroid for the resultant image
Specification
| Camera Link I / F | Standard: Camera Link Base-Configuration Maximum pixel clock 80 MHz (actually 2 pixels at 40 MHz) Number of channels: 1 channel |
| NTSC output |
Image size: 640 x 480 Digital format: YCbCr 16 bit ch: 1 ch (composite) |
| Bus interface | LVTTL |
| Supported OS | Linux kernel 2.4 / 2.6 |
| External size | 120 × 92 mm |
| Power supply | 3.3 V ± 5%, 5 V ± 5% (received from PMC connector) |
| Environmental condition |
Operating temperature range: 0 to 40 ° C Storage temperature range: -20 to 70 ° C Operating humidity range: 90% RH or less (no condensation) Storage humidity range: 90% RH or less (without condensation) |
