Axfmc 6020

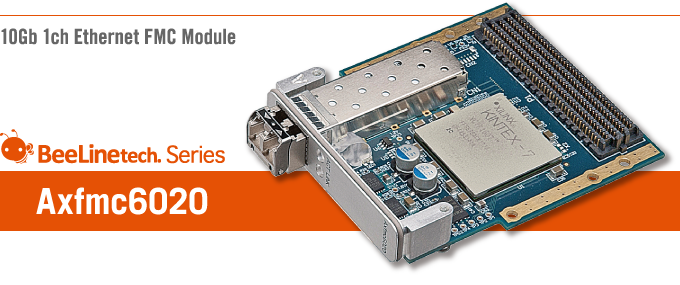

10Gb 1ch Ethernet FMC Module

  • Next generation Ethernet standard 10GBASE-R compliant (bandwidth 10 Gbps)
  • Remote communication of 10 km between nodes is possible with single mode optical fiber
  • Adopted FMC (HPC) form factor
  • TCP or UDP is implemented with hard logic and maximum transfer rate of 9 Gbps maximum is realized
  • User can easily attach Ethernet communication function

Specification

10 Gb Ethernet Port 1 Port
Connector SFP +
Standard 10GBASE-R compliant
Communication protocol Scheduled to support TCP / UDP TCP
Status LED Front panel: 2 color two luminescence
FMC I / F Standard ANSI / VITA 57.1FPGA Mezzanine Card (FMC)Standard
Pin Assign HPC (High Pin Count)
Bus I / F ARKUS proprietary I / F specification
BSP Sample
VHDL code of FMC carrier board side BUS I / F
Outline 76.5 (L) x 69 (W) (mm) Containing not included
Power supply input 3.3 V ± 5% or 12 V ± 5%
Power consumption 4 W or less
Usage Environment Temperature: 0 ° C to 40 ° C
Humidity: 20% to 85% (non condensing)

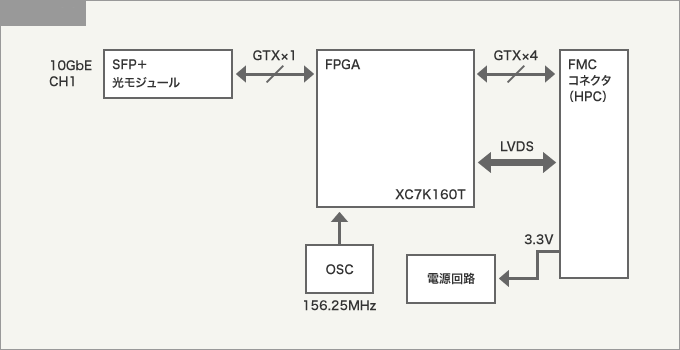

Block Diagram
