COM Express Solution
COM Express is the standard of next-generation COM (Computer On Module) established by PICMG. Arkus’s COM Express solution combines the flexibility of the COM Express carrier board developed by Gopher and the supply capability of the standardized COM Express module to realize the demands of delicate customers, Long-term stable supply is realized.

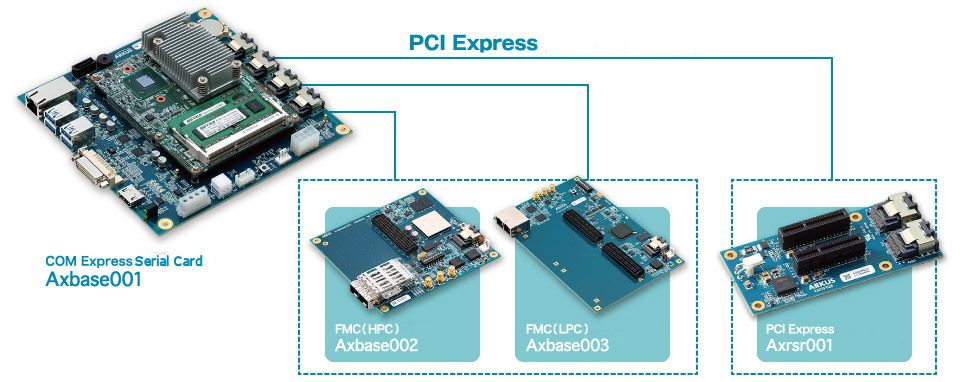

Sample Setup
Immediately realize a PC with the desired number of slots / lane with the PCI Express riser card.
For example, we installed a super high speed A / D FMC and realized a data collection system with 10 Gb transmission width.
For example, four Camera Link FMC cards are installed to realize a multi camera (~ 4) video server.

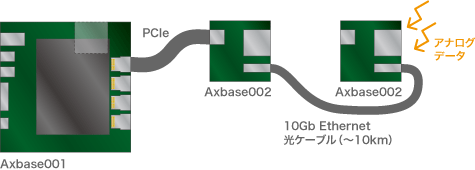

BexLineEthernet function is also standard in Axbase 002/003. By attaching, for example, an A / D FMC card to this, it realizes a remote data collection front end with PC (CPU) less.
COM Express Carrier Board

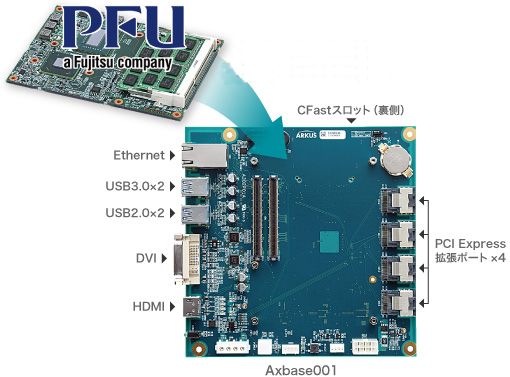

Axbase 001
COM Express MiniITX
General-purpose Carrier Board
Axvme 2000
FMC Carrier Board
Axbase 002
FMC (HPC) Carrier Board for Axbase 001
Axbase 003
FMC (LPC) Carrier Board for Axbase 001
Axbase 004
FMC (LPC) Carrier Board for Axbase 001
COM Express Carrier Unit
Axbox 001
PC case for Axbase 001
Axrmm-7000
Box PC type
COM Express Carrier System
Axrm1-7000 / Axrm2-7000
1U / 2U rack mount
COM Express Carrier System
Axbase STK
Starter kit for Axbase 001
– FAN, enclosure with power supply
– Axbase 001, Axrsr 001 × 2 installable
PCIE Express Riser Card
Axrsr 001
PCI Express riser card
– PCI Express (× 4) × 2 slot
– Axbase 001 and MiniSAS cable connection possible
