Axcmr 6011

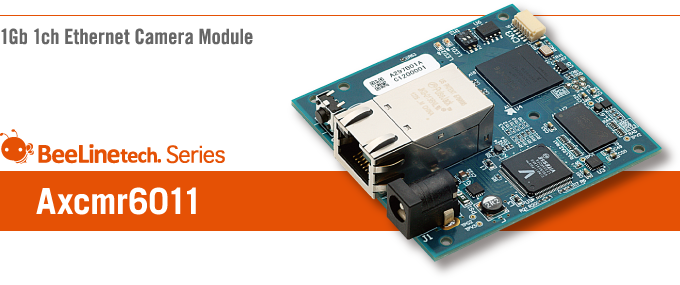

1Gb 1ch Ethernet Camera Module
- All Ethernet communication / protocol processing is done by hard logic, CPU-less realization of high-speed Ethernet communication
- By processing everything with hard logic, it is possible to transfer data at 90% or more efficiency (900 Mbps with Gb)
- High performance IP camera can be easily realized by connecting to a board camera
- Since it is CPU-less, low power consumption
Specification
| Image input port | Port | 1 Port |
| Connector | DF 12 series 60 pin (Hirose) | |
| Image format |
RGB 4: 4: 4 (24 bits) YCbCr 4: 2: 2 (16 bits) YCbCr 4: 2: 2 (8 bits) |
|
| Data width | Each 8 bits | |
| Image size |
VGA 640 × 480 SXGA 1280 × 1024 Full HD 1920 × 1080 |
|
| Frame rate | Up to 30 fps | |
| Gb Ethernet | Port | 1 Port |
| Connector | RJ-45 | |
| Standard | 1000 BASE-T compliant | |
| Communication protocol | UDP (TCP is under planning) | |
| Status LED | LINK / ACT | |
| JPEG compression function | Compliant standard |
ISO / IEC 10918-1 JPEG Standard Baseline Sequential DCT mode |
| Outline | 64 (L) x 60 (W) (mm) | |
| Power supply input | Connector: Standard DC jack (inner diameter 2.1 mm, outer diameter 5.5 mm) | |
| Voltage: DC 5 to 12 V (maximum range: DC 4.5 to 13.2 V) | ||
| Power consumption 3 W or less | ||
| Usage Environment | Temperature: -10 ° C ~ 65 ° C | |
| Humidity: 80% RH or less (without condensation) | ||

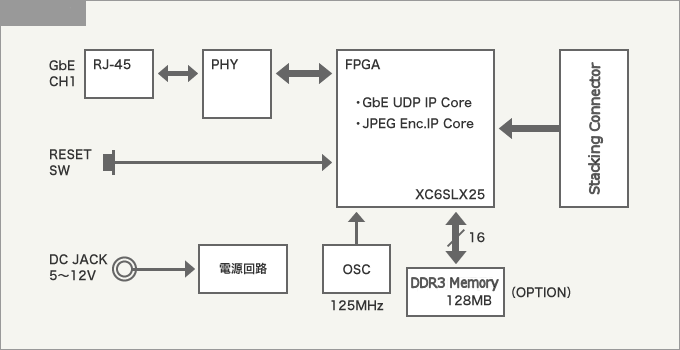

Block Diagram
