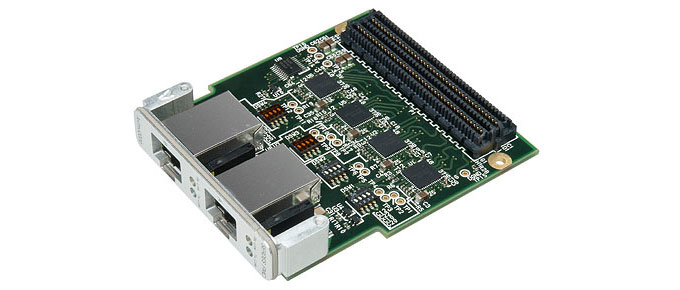

Axfmc 0020
Real-time general-purpose logic board series FMC SERDES mezzanine card
Adding SERDES I / F to FMC Carrier Board
High-speed communication of up to 2.5 Gb / sec becomes possible by converting the data transmitted and received from the FMC carrier via the SERDES interface on this board from parallel to serial .
Sample Gopher provided FPGA logic
Using Gopher’s sample FPGA logic, users can easily develop the system because the system can be produced only by developing the logic of the application part.
Specification
| FMC |
Conforming standard: ANSI / VITA 57.1 FPGA Mezzanine Card Standard |
| SERDES |
Status indication LED: Link (lit when SERDES connection is in effect) Err ( lit when SERDES connection is invalid) * Carrier board FPGA sample Chart number: Transmission 2ch reception 2ch Communication speed: 8b / 10b Encode connector Max : 2.5Gbps Connector: RJ45 (44661-0021) logic |
| Other hardware specifications |
Power supply: 3.3 V ± 5% 2.5 V ± 5% Board size: Board size: 69 × 76.5 mm FMC Mezzanine Card Single Width Operating temperature range: 0 to 60 ° C Operating humidity range: 35 to 85% |
