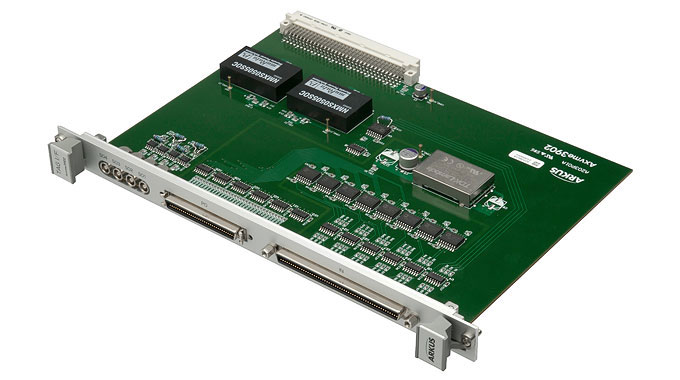

Axvme 3902
VME compatible output conversion interface board
Axvme 3902 is an interface board that insulates the output signal from the DIO board mounted on ARKUS Axvme 4900 and converts it to a cable driveable output. It converts and outputs each of high-speed logic signal (40 MHz) 4 ch and low speed logic (60 Hz) 32 ch signals. The input / output level is TTL level.
Specification
| I / O signal level | TTL |
| Number of input channels | 36 ch (40 MHz 4 ch + 60 Hz 32 ch) |
| Insulation | Yes (No inter-channel insulation) |
| VME | Compliant with VME bus Revision C.3 |
| Other Hardware specification |
Power supply: 5 V (supplied from VME connector) Temperature Operating: 0 to 40 ° C Storage: -20 to 70 ° C Humidity: 0 to 90% RH Board Dimension: 233.35 mm × 160 mm VME 6 U Single Slot Width |
