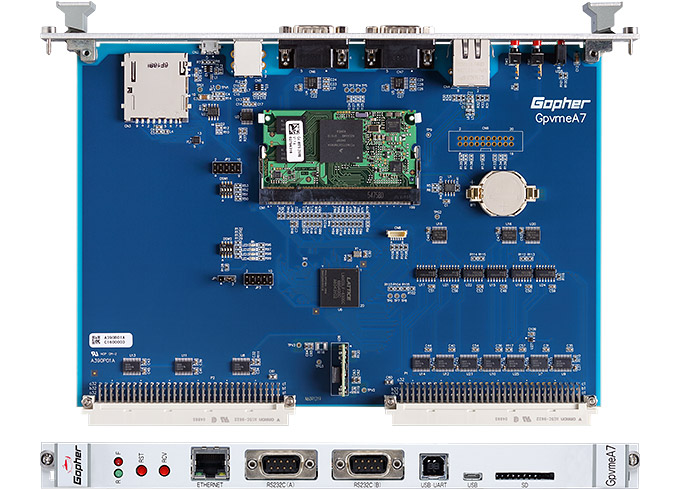

GpvmeA 7

i.MX 7 Equipped VME Board

GpvmeA 7 is a VME bus CPU board with ARM® Cortex-A7 (800 MHz).

Although it is a highly reliable VME bus standardized CPU board for industrial use, we offer it at an affordable price.
Since onboard Flash 512 MB is carried, additional purchase of OS and application storage is unnecessary.
Since it is equipped with an SD card slot that can retrieve data to the outside on the front panel surface.
It is also attractive that data can be easily extracted.
Please contact us if you are considering for peripheral slot.

Specification

CPU MCIMX 7S 5 EVM 08 S (NXP)
Core: Cortex-A 7 (800 MHz) / Coretex-M 4 (200 MHz)
Memory Main Memory: DDR 3 L 256 MB
Flash: SLC Nand 512 MB
Ethernet 10Base-T / 100Base-TX compatible
SD SD Memory Card Specification 3.0 compliant 1 port
USB USB 2.0 connector: USB MicroA / B 1 port
USB Uart Connector: USB Type B 1 port
RS232C Connector: DSub (9 pin) 2 port
RTC Real time clock IC
VME bus A32, A24, A16 Address D32, D16, D8 (EO)
VME master / slave
Bus arbiter of data size , interrupt handler, interrupter etc.
OS Linux (providing BSP)Kernel Version
4.1.15 Distribution Angstrom v 2015.12
Battery holder Li-ion battery for RTC
Power supply 5 V input (supplied from VME connector)
* Generate internal 3.3 V from 5 V
Current consumption 0.8 A (5 V) (TYP.)
Environmental specification Temperature: Operation 0 to 50 ° C, Storage -20 to 70 ° C
Humidity: 20 to 80% RH (without condensation)
Ambient: indoors (without corrosive gas)
Board size 233.35 mm × 160 mm
VME 6 U (Double Height) Single Slot Width

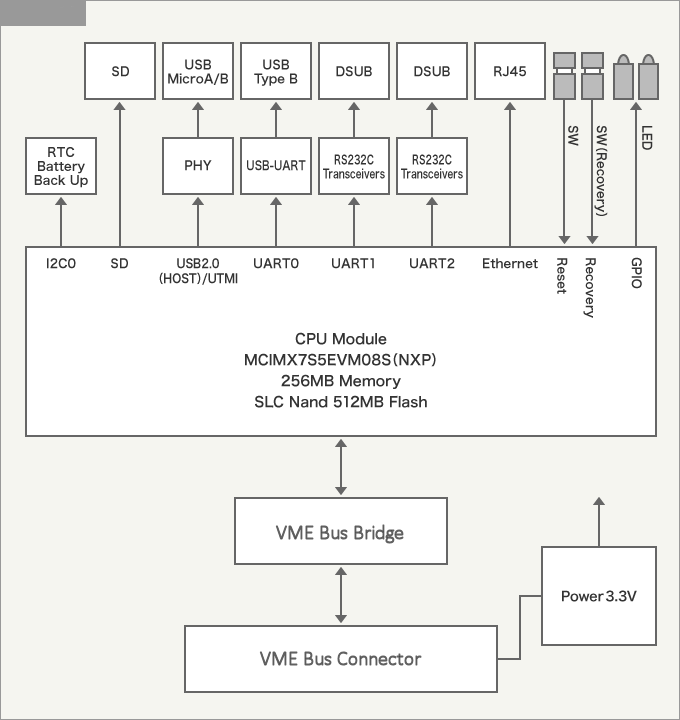

Block Diagram
