IFM 4900-A 001
Real-time general-purpose logic board series AIO board

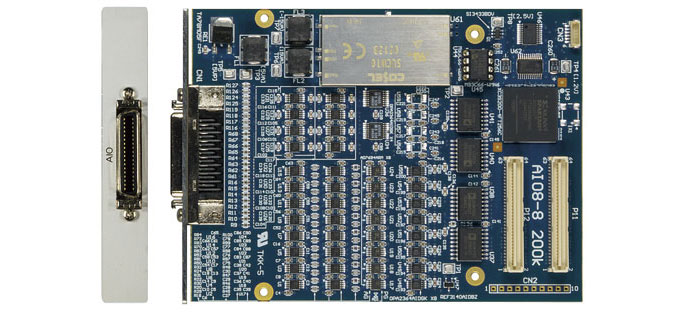

This machine is an analog input / output board that can be mounted on an extension connector of real-time logic general-purpose VME base board Axvme 4900 .
– 16-bit 8-channel simultaneous sampling A / D
– 16-bit 8-channel D / A
– Analog-digital isolation (non-isolated between channels)
Specification
| Analog input |
Channel number: 8 channels A / D resolution: 16 bits Sampling rate: 200 kSPS Accuracy: TBD Input range: ± 10 V Input method: Differential input Input impedance: 1 MΩ or more (between differential inputs) Isolation: Analog input - Expansion board bus to 1 kV DC Connector: Half pitch signal level: TTL |
| Analog output |
Sampling rate: 200 kSPS Accuracy: TBD Output range: ± 10 V Isolation: Analog output - Expansion board Bus to: 1 kV DC Connector: Half pitch |
| Bus interface | Signal level: TTL |
| Supported OS | Linux kernel 2.4 / 2.6 |
| External size | 120 × 92 mm |
| Power supply | 3.3 V ± 5%, 5 V ± 5% (received from PMC connector) |
| Environmental condition |
Operating temperature range: 0 to 40 ° C Storage temperature range: -20 to 70 ° C Operating humidity range: 90% RH or less (no condensation) Storage humidity range: 90% RH or less (without condensation) |
