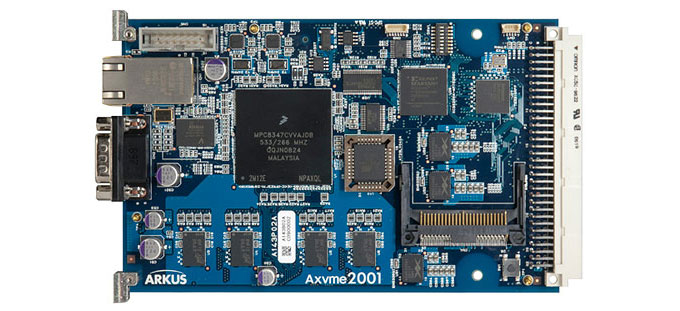

Axvme 2001
Daughter board with RAS function
Installed in Axvme 2000,
– Can be managed and maintained remotely via network.
– Implemented RAS function that can monitor CPU internal temperature, VME bus power supply, fan etc status monitoring and VME bus reset.
Specification
| CPU | Freescale made Power QUICC II PRO 400 MHz |
| FPGA | Spartan-3A made by Xilinx |
| Memory |
DDR2 SDRAM: 256 MB Flash: 512 KB (512 K × 8 bits) for boot Compact Flash: For OS application SDRAM: for 8 MB JPEG encoder |
| Communication | Ethernet: 10/100 / 1000base RS232C |
| Other Hardware specification |
EEPROM JPEG encoder USB 1.1 / 2.0 Dimensions : 100 x 160 Power supply: 5 ± 5% Environment: Operating temperature: 0 to 40 ° C, storage temperature: -20 to 70 ° C, humidity: 90% RH or less |
