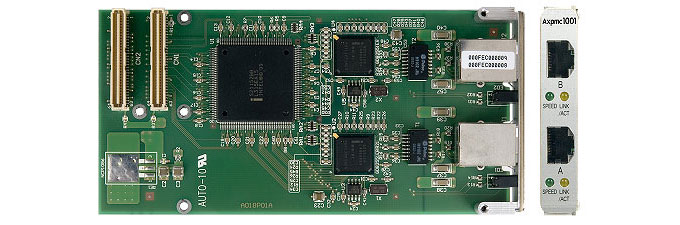

Axpmc 1001
Ethernet 2 ch PMC card
Axpmc 1001 Ethernet 2 ch PMC card is a PMC (32 bit) module conforming to the PCI Mezzanine Card / IEEE P 1386.1 standard which has an Ethernet function compatible with 2 ch 100 BASE – TX / 10 BASE – T. It is effective when installing two Intel 82551ER and adding an Ethernet port.
Specification
| Ethernet controller | Intel made GD82551ER × 2 |
| Communication Speed | 10 Mbps, 100 Mbps (both duplex operation is possible) |
| Communication Standard | 10Base-T / 100Base-TX |
| Connector | RJ-45 × 2 |
| PCI bridge | Intel S21152BB 32 bit, 33 MHz |
| Signaling Voltage | 3.3 / 5 V (both voltage correspondence) |
| Power-supply Voltage | DC 3.3 / 5 V (both voltage correspondence) |
| Power Consumption | 350 mA (typ.) |
| Outline | 149 × 74 × 12 mm |
