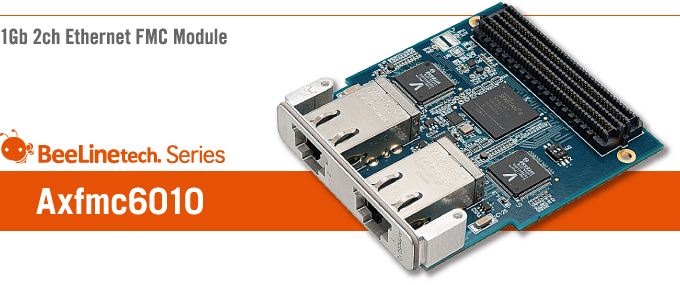

Axfmc 6010

1Gb 2ch Ethernet FMC Module

  • Ethernet standard 1000BASE-T compliant (bandwidth 1 Gbps) currently in widespread use
  • Adopted FMC (LPC) form factor
  • TCP or UDP is implemented with hard logic, achieving constant transfer rate up to 900 Mbps
  • User can easily attach Ethernet communication function

Specification

Gb Ethernet Port 2 Port
Connector RJ 45
Standard 1000 BASE-T compliant
Communication protocol Scheduled to support TCP / UDP TCP
Status LED Built-in RJ45
FMC I / F Standard ANSI / VITA 57.1FPGA Mezzanine Card (FMC)Standard
Pin Assign LPC (Low Pin Count)
Bus I / F ARKUS proprietary I / F specification
BSP Sample
VHDL code of FMC carrier board side BUS I / F
Outline 76.5 (L) x 69 (W) (mm) Containing not included
Power supply input 3.3 V ± 5% or 12 V ± 5%
Power consumption 3 W or less
Usage Environment Temperature: 0 ° C to 40 ° C
Humidity: 20% to 85% (non condensing)

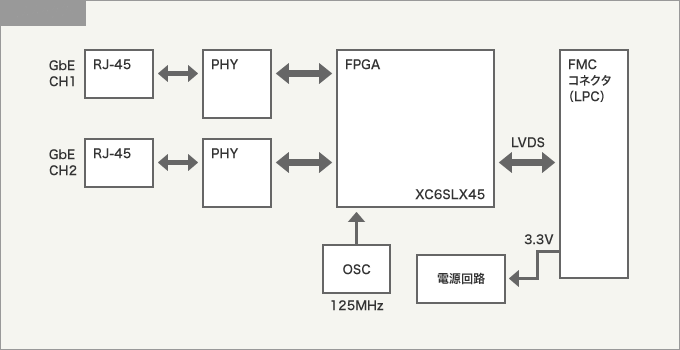

Block Diagram
