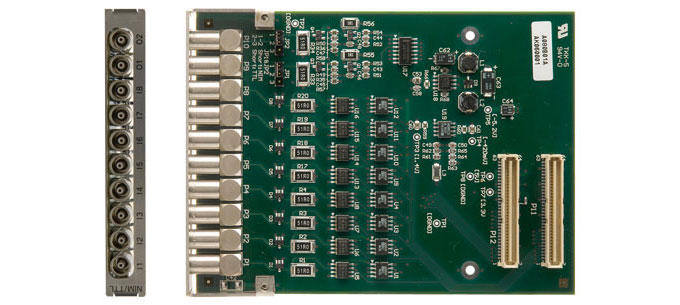

IFM 4900-D 003
Real-time general-purpose logic board series Interrupt / register board (NIM / TTL)
– OUTPUT: 2 points, INPUT: 8 points
– Interrupts are generated by N triggers
– Delay can be set for each input
– Trigger or SUM OUT is output according to interrupt
– Output pulse width can be set
– Interrupt occurrence Holds the condition at the time and can read it
– Counts the trigger for each input
– Thinning the trigger for each input counts
– Counts the occurrence of interrupts
Specification
| External I / F |
Signal level: NIM / TTL Insulation: none Ch number INPUT: 8 ch, OUTPUT: 2 ch Connector: LEMO connector (made by LEMO: EPL.00.250.NTN) |
| I / F with baseboard | LVTTL |
| Supported OS | Linux kernel 2.4 / 2.6 |
| External size | 120 × 92 mm |
| Power supply | 3.3 V ± 5%, 5 V ± 5% (received from PMC connector) |
| Environmental condition |
Operating temperature range: 0 to 40 ° C Storage temperature range: -20 to 70 ° C Operating humidity range: 90% RH or less (no condensation) Storage humidity range: 90% RH or less (without condensation) |
