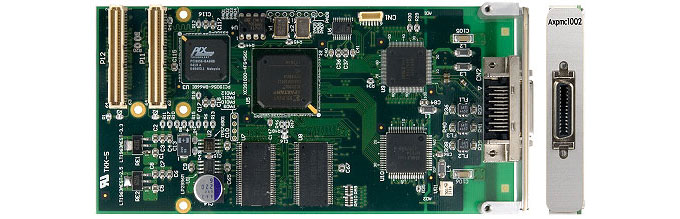

Axpmc 1002
NTSC input / output PMC card
Axpmc 1002 NTSC I / O PMC card is a PMC (32 bit) module conforming to the PCI Mezzanine Card / IEEE P 1386.1 standard which has video input / output of 1 channel output 1 ch input. Can be used when adding NTSC input / output.
Specification
| Video input / output | Signal standard | NTSC video signal |
| Input channel | Composite input: 1 ch Y / C separation input: 1 ch * Select either by register | |
| Output channel | Composite output: 1 channel Y / C separation output: 1 channel * simultaneous output | |
| A / D resolution | 10 bit | |
| D / A resolution | 8 bit | |
| Digital format | YCbCr 16 bit | |
| Digital image size | 640 × 480 | |
| Connector | Half pitch 26 pin (MDR type) | |
| Memory | LUT (in FPGA) | Y signal For gamma correction (10 bit → compressed to 8 bits) Capacity: 1 KB × 1 plane |
| Image memory |
Capacity for input image capture : 1 MB × 2 faces (frame) Capacity for output image : 1 MB × 3 faces (frame) * Ring memory configuration and one input / output on the PCI memory map are visible. * Use SDRAM (64 MB or more) x 1. |
|
| Bus Interface | PMC bus | PCI v 2.2 (32 bit, 33 MHz) |
| Occupied Space | Memory space 3 MB | |
| Interrupt line | INTA | |
| Power supply | 5 V ± 5%, 3.3 V ± 5% (received from the PMC connector) | |
| Current consumption | TBD | |
| Environmental Condition | Operating temperature range | 0 to 55 ° C |
| Storage temperature range | -20 to 70 ° C | |
| Operating humidity range | 90% RH or less (without condensation) | |
| Storage humidity range | 90% RH or less (without condensation) |
