Axcom 1000
Ultra small single board computer with SH-4A

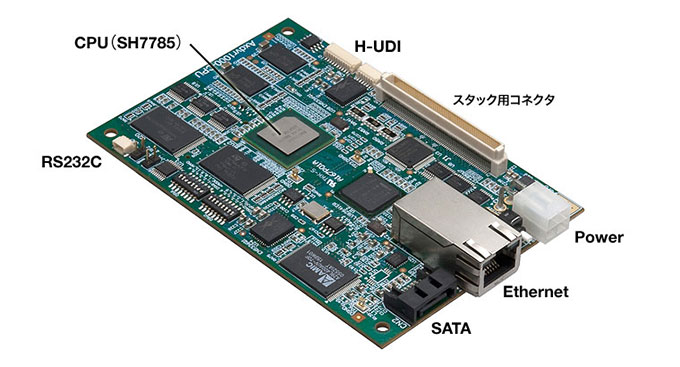

Axcom1000 is an ultra-small single board computer equipped with the SH7785, which realizes low cost, high performance, space saving of 120 (L) x 80 (W) x 14 (H) external dimensions.
The IF with the PC adopts general-purpose Ethernet. Custom IO modules such as Graphic, CAN, AI, AO, DI and DO can be flexibly expanded according to user’s needs.
Specification
| CPU module | CPU | SH7785 |
| Memory | DDR 2 - SDRAM Flash MMC Card | |
| SATA IF | 1 channel 3 Gbps | |
| Ethernet | 1 ch 10/100/1000 Mbps | |
| RS232C | 1ch | |
| Expansion module |
IO: DI, DO, AI, AO, etc.Communication: CAN etc. Image input: JPEG encoder etc. |
|
| Firmware | OS: Linux Kernel 2.6 | |
| PC software | API for Windows and sample program | |
| Outline | 120 (L) x 80 (W) x 14 (H) (mm) | |
| Input Power |
5 V ± 5% or 3.3 V ± 5% (power consumption: 10 W or less) 12 V ± 5% (for IO expansion) |
|
| Environment Usage |
Temperature: 0 ℃ to 50 ℃ Humidity: 20% to 85% (non condensing) |
|
