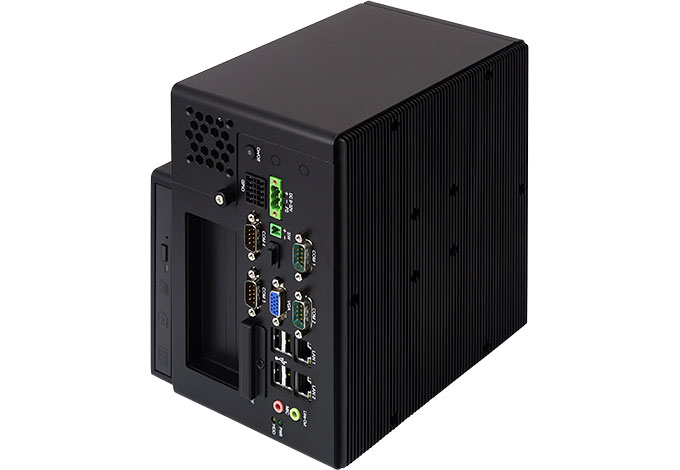

ACS-2645
Intel Atom D 2550 with fanless box PC equipped with PCI / PCI slot
(This product is AiP (ARKUS IMPORT PRODUCTS) product.)
Specification
| CPU | Intel Atom processor D2550 (1.86 GHz) installed |
| Chipset | Intel NM 10 Express |
| Memory | SO-DIMM slot x 2 (up to 4 GB) |
| Interface |
RS-232 x 3RS-232/422/485 x 1 VGA x 1 HDMI x 1 USB 2.0 x 4Gb Ethernet x 2 Audio Port (MIC-in / Line out) GPIO in x 4, GPIO out x 4 |
| Storage |
2.5 "SATA HDD space x 2 CF slot |
| DVD Drive | Optional |
| Expansion Slot | PCI x 1 + PCIe (x 1) x 1, or PCI x 2 slot |
| Enclosure |
Easy access structure easy to attach / detach HDD, PCI / PCIe board Size: 203.5 x 211.2 x 153.2 mm Din-rail mount option |
| Power Supply | Wide range power input DC 9 to 32 V (AC input option) |
| Operating Temperature Range | 0 ° C to 50 ° C |
| OS | Win 7 Pro, Win CE 6.0, Windows embedded standard 7 |
