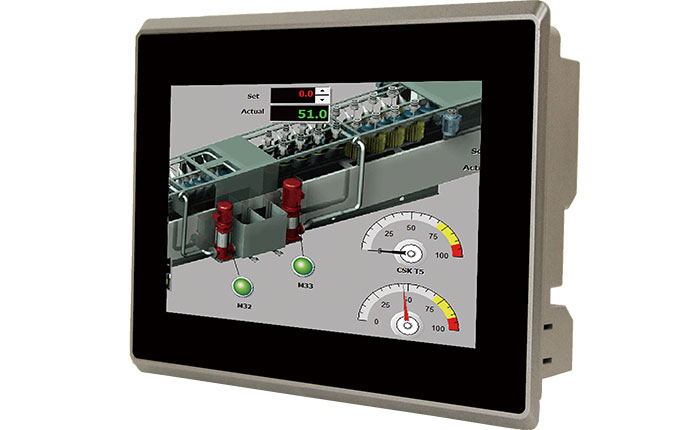

ARCHMI - 7xx (P)

With Intel Atom N2600, stylish panel computer (7/8 / 12.1 / 15 inches)

(This product is AiP (ARKUS IMPORT PRODUCTS) product.)

Specification

CPU Intel Atom processor N2600 Dual Core (1.66 GHz) installed
Chipset 2GB DDR3 onboard memory
memory SO - DIMM slot x 2 (4 - 16 GB)
Interface USB 2.0 x 2
RS-232 x 1
RS-232/422/485 x 1
Audio output (Line out)
Gb Ethernet x 2
half size Mini-PCIe slot
Storage Half Slim HDD bay
SD card slot for SSD
Display ● ARCHMI - 707 (P)    7 inch TFT - LCD, resolution: max 800 x 480, color: max 262 K,    brightness: 350 cd / m 2, view angle: H: 140 / V: 110 °
● ARCHMI-708 (P)    8 inch TFT-LCD, resolution: max 800 x 600, color: max 16.2 M,    brightness: 350 cd / m 2, view angle: H: 140 / V: 125 °
● ARCHMI-712 (P)    12.1 inch TFT-LCD, resolution: max 800 × 600, color: max 16.2 M,    brightness: 330 cd / m 2, view angle: H: 160 / V: 140 °
● ARCHMI - 715 (P)   15 - inch TFT - LCD, resolution: max 800 x 480, color: max 16.2 M,    brightness: 350 cd / m 2, view angle: H: 160 / V: 145 °
Touch Screen ● Low anti-film    Interface: RS-232, light transmittance: 80%
● Projection Capacitance Type (P Model)    Interface: USB, light transmittance: 90%
Enclosure Front panel flat panel design, IP65 compatible aluminum die casting chassis
● ARCHMI-707 (P)    size: 202 × 149 × 39 mm, VESA mount: VESA 75 × 75
● ARCHMI-708 (P)    size: 231 × 176 × 51 mm, VESA mount: VESA 75 × 75
● ARCHMI-712 (P)    size: 319 × 245 × 52 mm, VESA mount: VESA 100 × 100
● ARCHMI-715 (P)   size: 410 × 310 × 55 mm, VESA mount: VESA 100 × 100
Power supply Wide range power input DC 9 to 36 V
Operating temperature range 0 ° C to 50 ° C
OS Windows XP Pro, Windows XP Embedded, Windows Embedded CE 6.0, Windows 7 pro for Embedded, Windows Embedded standard 7 (Win 7 support 3D Graphic function)
