Axbase 002
FMC (HPC) Carrier Board
Axbase 002 is the carrier board of the HPC type FMC module. In addition to extensibility by installing various FMC IO modules as an option of COM Express’s MiniITX general-purpose carrier board, it is possible to implement CPUless front-end data collection by installing BeeLine hard logic 10 Gb Ethernet even if it is not combined with COM Express It can also be used as a board.
- Equipped with Xilinx KINTEX-7 FPGA (XC7K160T-2FFG676C)
- DDR3 memory 1 GB (128 M × 16 bit width × 4) mounted
- Installed HPC FMC slot × 1
- PCIe x4 interface
- Two SFP + slots for 10 GbE
- External clock input (LVDS differential input with SMA connector × 2)
- External trigger input (LVTTL single end input with SMA connector × 1)
- Operates from 12 VDC single power supply
Specification
| FMC slot | Number of slots | 1 |
| FMC slot | Standard |
FPGA Mezzanine Card (FMC) High Pin Count (HPC) |
| FMC slot | Slot width | Single |
| FMC slot | Stacking height | 10 mm |
| FMC slot | VIO | HP pin: 1.8 V, HR pin: 2.5 V (VCCADJ) |
| FMC slot | VCCADJ | 2.5 V |
| FMC slot | Connector | ASP-134486-01 (SAMTEC) |
| PCIe port | Number of ports | 1 |
| PCIe port | Standard | PCI Express 2.0 |
| PCIe port | Number of lanes | x4 |
| PCIe port | Control signal | PCICLK / PERST # / WAKE |
| PCIe port | Connector | miniSAS-36P type (original specification) |
| 10 GbE slot | Number of slots | 2 |
| 10 GbE slot | Supported optical module | SFP + |
| Memory | DDR 3 | 512 MB |
| Outline | 120 (L) × 130 (W) (mm) | |
| Input Power | 12 V ± 5% | |
| Usage environment | 0 to 50 ° C 90% RH or less (no condensation) |

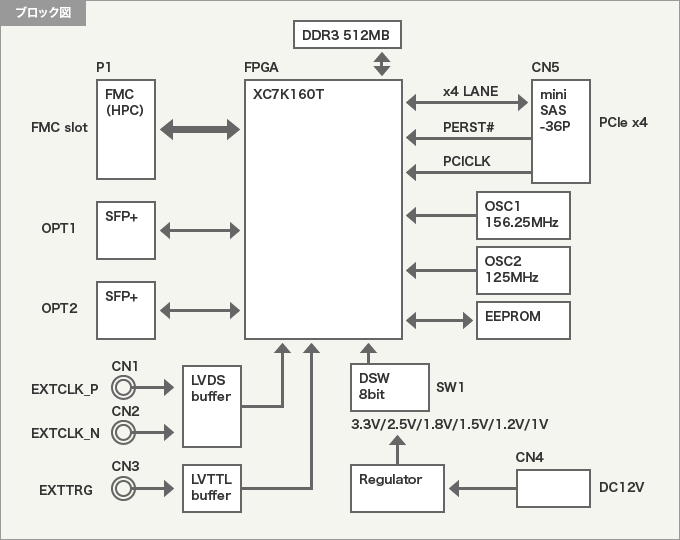

Block Diagram
