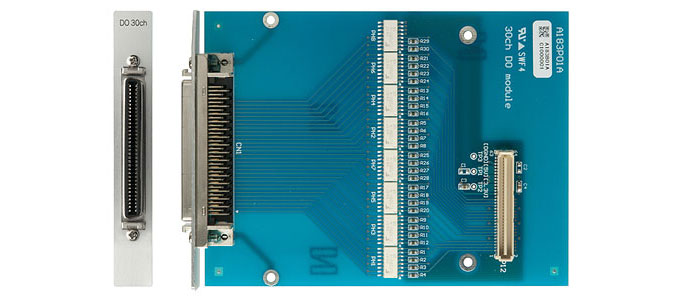

IFM 4900-D 004
Real-time general-purpose logic board series DO board
– Can be mounted on general-purpose logic board (Axvme 4900, Axvme 4901)
– 30 ch Isolated digital output (open collector)
Specification
| DO output |
Number of channels: 30 channels Signal specification: Open collector output Collector to emitter voltage (VCE): 1.8 V (Collector current (Ic) = 25 mA) Collector current rating: 50 mA Isolated : Yes Connector: MOR connector (3 M: 10268 · 52 A 2 PL ) Output signal frequency: 1 MHz or less |
| I / F with baseboard | LVTTL |
| Supported OS | Linux kernel 2.4 / 2.6 |
| External size | 122.5 x 92 mm |
| Power supply | 3.3 V ± 5%, 5 V ± 5% (received from PMC connector) |
| Environmental condition |
Operating temperature range: 0 to 40 ° C Storage temperature range: -20 to 70 ° C Operating humidity range: 90% RH or less (no condensation) Storage humidity range: 90% RH or less (without condensation) |
