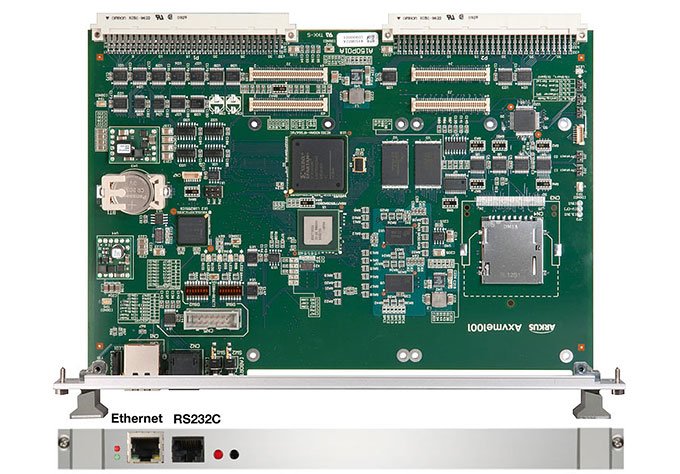

Axvme 1001 is a VME bus board equipped with an SH – 4A extended SH7785 core of Renesas Technology Corporation. The SH7785 has a maximum operating frequency of 600 MHz, and has realized a drastic improvement in performance compared with the conventional type such as supporting large capacity cache and DDR 2 memory.
In addition to equipping the PMC slot for PCI type IO expansion, Axvme 1001 prepares a general purpose IO slot that uses the SH local bus and easily and flexibly extends the custom IF module by FPGA programming It will be possible.
The VME bus master / bus slave function is implemented, and it is possible to select CF connector mounting type and SD connector mounting type as external media.
