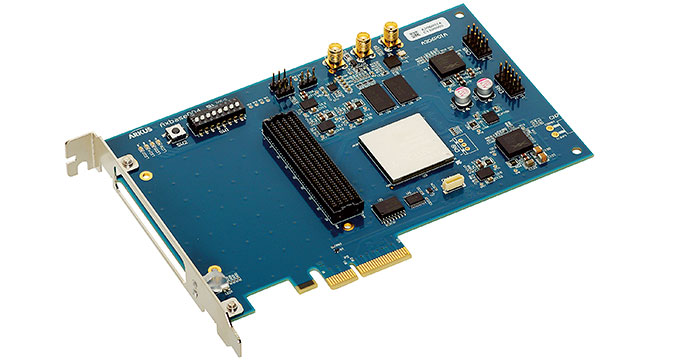

Axbase 004

PCI Express FMC (HPC) carrier board

Axbase 004 is a PCI Express FMC (HPC) carrier board with a PCI Express interface. Since it can be connected to the PCI Express slot, we will provide you with a platform that you can immediately use with your PC.

  • FMC (FPGA Mezzanine Card): ANSI / VITA 57 standard
  • A variety of FMC modules can be controlled and computed with the FPGA logic of the carrier board to realize a high-speed and flexible system construction
  • Supports individual signal processing speeds up to 10 Gb / s while keeping the whole bandwidth between FMC module and carrier board at 40 Gb / s
  • By eliminating the overhead of the protocol, it is possible to eliminate the latency and reliably transfer the data

Specification

FMC slot Number of slots 1
Standard FPGA Mezzanine Card (FMC)
High Pin Count (HPC)
Slot width Single
Stacking height 10 mm
VIO HP pin: 1.8 V
HR pin: 2.5 V (VCCADJ)
VADJ 2.5 V
General purpose IO port Connector ASP-134486-01 (SAMTEC)
Number of ports 2
Number of bits 8 bit / ch
Signal level CMOS 2.5 V
Connector Pin header 10 pin
External Clock Input Signal level LVDS
Input impedance 100 O (differential)
Connector SMA × 2
External Trigger Input Signal level LVTTL
Input impedance 50 O (single ended)
Connector SMA
FPGA Device XC7K160T-2FFG676C (Xilinx)
DDR3 memory Capacity 512 MB
Device MT 41 J 128 M 16 JT - 125 (MICRON) × 2
EEPROM Capacity 2 kbit
Device 24 AA 025 T - I / OT (Microchip)
Reference clock OSC 1 156.25 MHz (option: not mounted)
OSC 2 125 MHz
Onboard switch SW1 DIPSW 8 bit
SW2 H / W reset (FPGA reconfig)
Environmental specification Operating temperature range 0 to 50 ° C
Operating humidity range 0 to 90% RH or less (without condensation)
Storage temperature range -20 to 85 ° C
Storage humidity range 95% RH or less (without condensation)
Mechanical specification External dimensions 111.15 × 167.65 mm

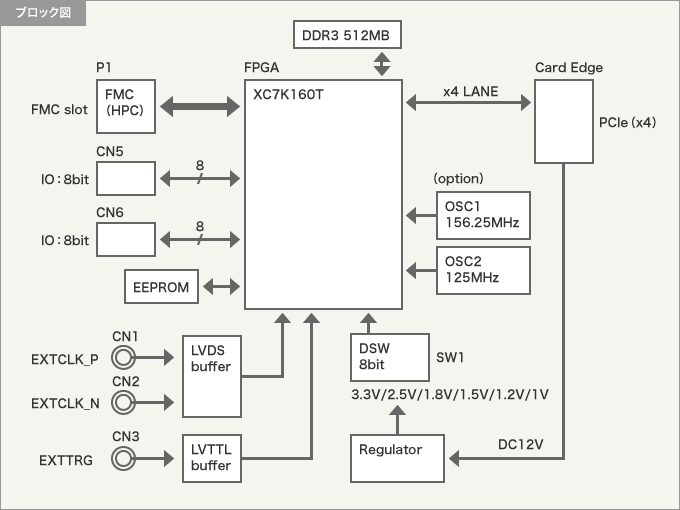

Block Diagram
