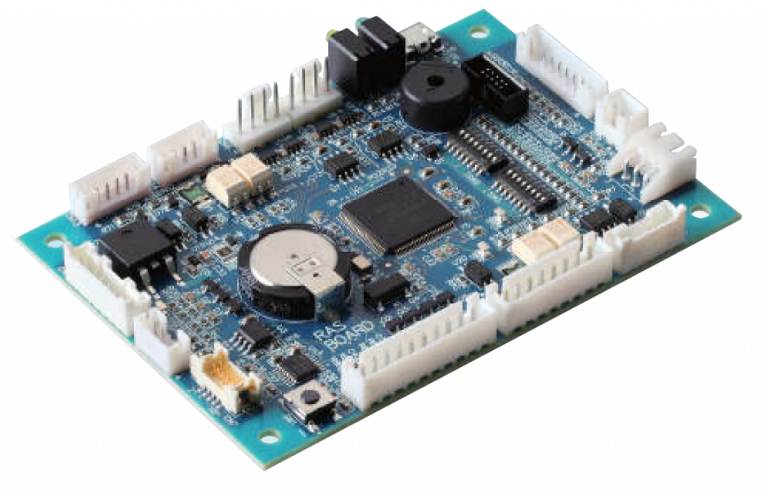

Axras 8000
COM Express MiniITX General-Purpose Carrier Board
Arkus built in industrial computers, integrated RAS Solution that monitors and controls temperature, fan, power supply, etc.
Reliability = Suppresses the occurrence of troubles and failures
Availability (availability) = Shortening maintenance time and high availability
Serviceability (maintainability) = easy to handle failure and maintenance
Reliability = Suppresses the occurrence of troubles and failures
Availability (availability) = Shortening maintenance time and high availability
Serviceability (maintainability) = easy to handle failure and maintenance

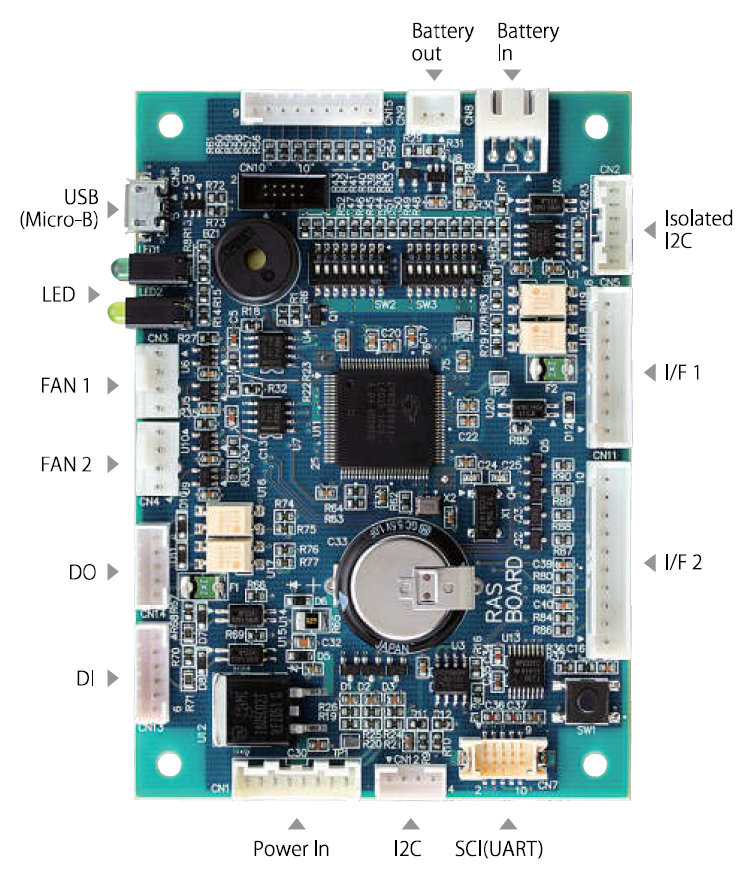

Specification
| CPU | ARM Cotex-M3 Core |
| CPU Board Communication | SCI(UART) |
| Power Supply Monitoring | + 12V, +5V, 3.3V, Battery |
| FAN Control (x2) | Detection of rotation speed of FAN and rotation speed control |
| LED (x4) | POWER/SYS ERR/WRN1/WRN2 |
| Isolated I2C | Connect with extended IO card etc. |
| I2C | Connection with temperature sensor etc. |
| Contact I / O | Input x 2, Output x 2 |
| Super Capacitor | For backup after main power shutdown |
| CPU Board I / F | For status input/output with CPU board |
| Buzzer | For alarm |
| Temperature Sensing | Onboard temperature sensor x 1 |
| USB (Micro-B Connector) | Communication with host systems etc. |
| Input Power Supply | +12V ± 5 % |
| Size | 70.0 x 100.0 mm |
