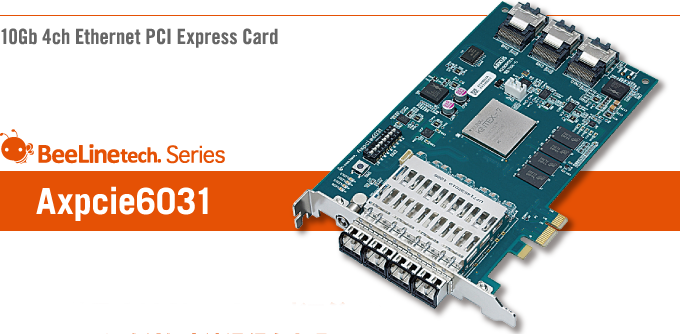

Axpcie 6031

10Gb 4ch Ethernet PCI Express Card

  • Next generation Ethernet standard 10GBASE-R compliant (band 10 Gbps)
  • Single mode optical fiber communication 10 km remote communication possible
  • The form factor adopts the PCI - Express card
  • TCP or UDP is implemented with hard logic and maximum transfer rate of 9 Gbps maximum is realized
  • Since the Ethernet protocol is processed with HW, the processing of the system CPU can be greatly reduced
  • User can easily attach Ethernet communication function

Specification

10 Gb Ethernet Port 4 Port
Connector SFP +
Standard 10GBASE-R compliant
Communication protocol Scheduled to support TCP / UDP TCP
Status LED Front panel: 2 color two luminescence
Memory DDR 3 2 GB
Pass I / F Standard PCI-Express Gen 2
LANE x4
BSP Windows 7 Driver, Sample Application
Linux Kernel 3.0 Driver, Sample Application
Outline 167.65 (L) x 111.15 (W) (mm) Containing part not included
Power supply input 3.3 V ± 5% or 12 V ± 5%
Power consumption 6 W or less
Usage Environment Temperature: 0 ° C to 40 ° C
Humidity: 20% to 85% (non condensing)

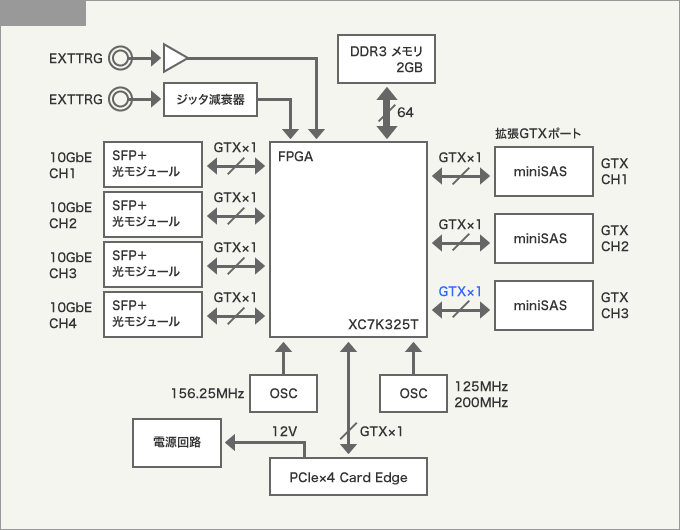

Block Diagram
