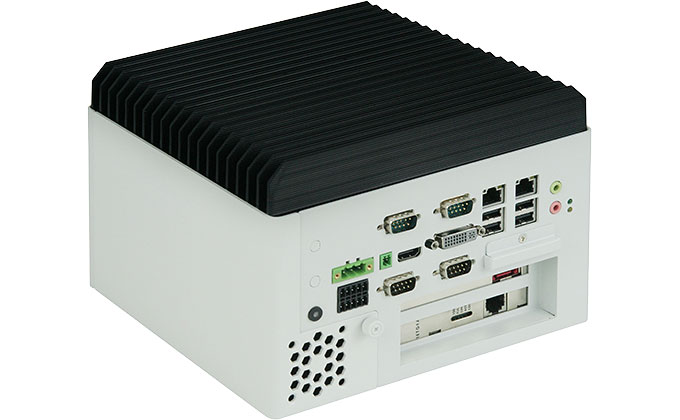

ACS-2695A
3rd generation Core i3 / 5/7 mounted, fanless box PC equipped with PCI / PCI slot
(This product is AiP (ARKUS IMPORT PRODUCTS) product.)
Specification
| CPU | Intel 3rd Gen. Core i7 / i5 / i3 (Socket G2) installed |
| Chipset | Intel HM77 chipset |
| Memory | SO - DIMM slot x 2 (4 - 16 GB) |
| Interface |
RS-232 x 3RS-232/422/485 x 1 DVI-I x 1 HDMI x 1 Gb Ethernet x 2 USB 2.0 x 4 Audio port (MIC-in / Line out) GPIO in x 4, GPIO out x 4 |
| Storage |
2.5 "SATA HDD space x 2 CF slot |
| DVD Drive | Optional |
| Expansion Slot | PCI x 1 + PCIe (x 16) x 1 slot |
| Enclosure |
HDD, Easy access structure easy to attach / detach PCI / PCIe board Size: 211.2 x 203.5 x 177 mm FAN option Din-rail mount option |
| Power Supply | Wide range power input DC 9 to 32 V |
| Operating Temperature Range | 0 ° C to 50 ° C |
| OS | Windows XP embedded, Windows embedded staandard 7, Windows 7 Pro for embedded |
