Axarm 9041
3.5-inch CPU board with ARM Cortex-A9
Axarm 9041 is a CPU board that is conscious of mobile loading. Although it is low power consumption, it has CPU performance of up to 4 cores and image rendering performance of Full HD. By designing a wider operating temperature range, it can accommodate many applications as an industrial embedded board.
Overview
- ARM Cortex-A 9 architecture
- Linux (kernel 3.0.35)
- Domestic design · domestic production
- Temperature expansion (-20 ° C to 70 ° C)
- Low cost
- Low power consumption
- Full HD 1080P (H.264 M-JPEG) Encode / decode compatible
- Adopt gold-plated contacts on all connectors
- Semi-custom possible
Specification
| Controller |
CPU: i.MX 6 Axarm 9010: i.MX 6 Solo Axarm9020: i.MX 6 DualLite Axarm 9030: i.MX 6 Dual Axarm 9040: i.MX 6 QuadFour families are pin-compatible |
| Local memory |
DDR 3: 1 GB SPI FLASH: 16 Mb |
| Ethernet I / F |
10/100/1000 Base-TX, 1 ch PoE Class 3 |
| Serial I / F |
RS232C, 1ch LVTTL, 1ch |
| USB I / F | USB2.0, 4ch (Front 2ch, On-Board 2ch) |
| Camera I / F |
MIPI CSI-2 interface, 1 channel PARALLEL CAMERA interface, 1 channel |
| Audio I / F | LINE IN, LINE OUT |
| Display I / F |
LVDS interface, 1ch DVI-D, 1ch |
| SATA | mSATA, 1ch |
| PCIe | mini PCIe, 1ch |
| I 2 C GPIO | I 2 C GPIO connector, 1 ch |
| SD / MMC / I / F | SD, 2 ch |
| RTC | Calendar function |
| switch | Reset switch, system setup switch |
| LED | Power supply LED × 1, PoE LED × 1, status LED × 2 |
| Environment |
Temperature: Operating: 0 to 50 ° C / Storage: -20 to 70 ° C Humidity: 10% to 90% (non condensing) |
| OS | Linux (kernel 3.0.35), Android (kernel 4.3) |

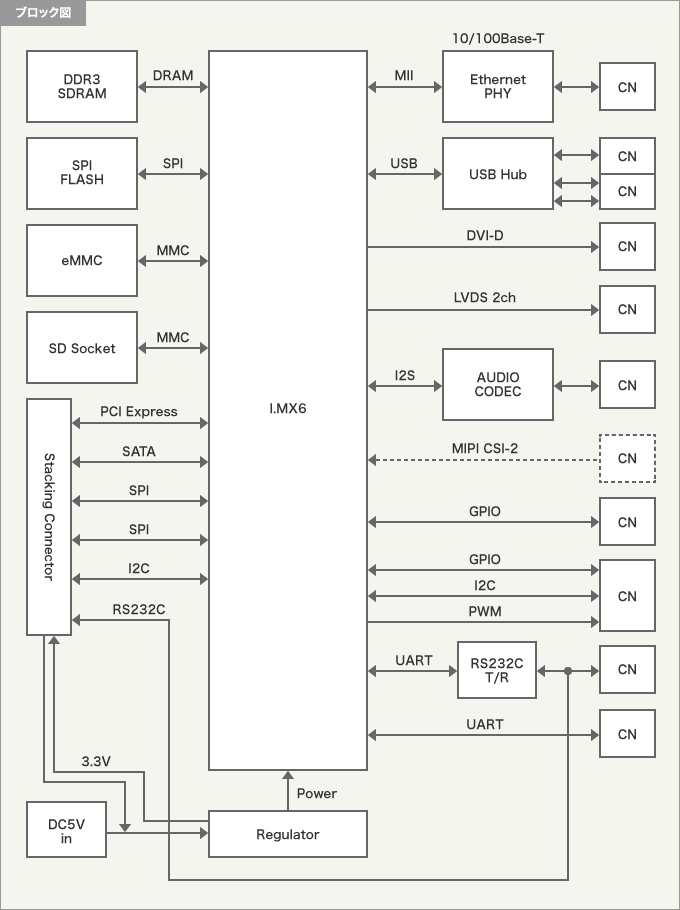

Block Diagram
